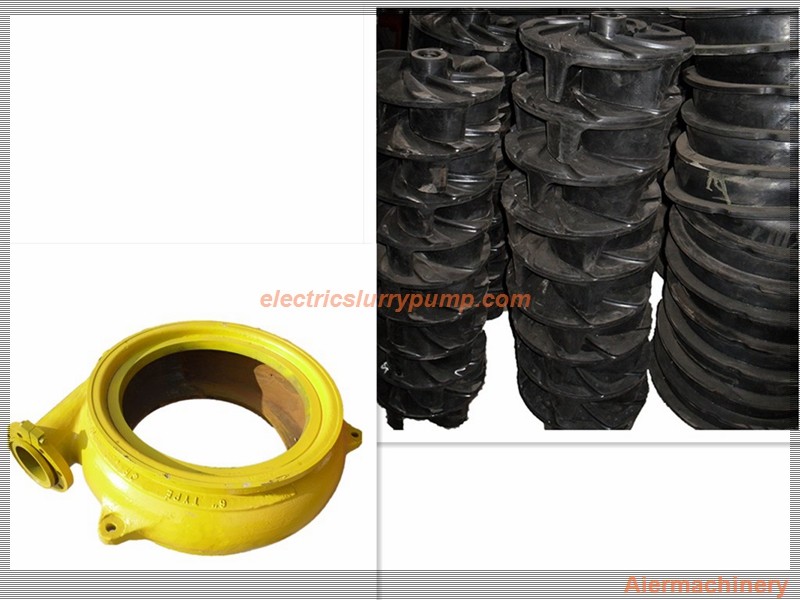

Rubber Lined Centrifugal Slurry Pump parts of Impeller, liner, seals

Brand Name : Aier

Model Number : WA,WG,WY,WZ,WL

Place of Origin : Hebei, China

MOQ : 1

Payment Terms : T/T, L/C

Supply Ability : 200 PER MONTH

Delivery Time : 20-40 DAYS

Packaging Details : iron frame, wooden case

Material : R08, R26, R33, , A05, A07, A33, A49,

OEM : Manufacture accroding to drawing

Application : Interchangable to minng slurry pump, slurry pump, sand dreding pump parts

Process : Cast

Interchangable : interchangable to most standard slurry pumps

Features : anti-corrison, anti-wear, long life

Contact Now

1. OEM slurry pump part codes

Here we list some OEM part codes for reference:

Impeller: 127, 147, 145, etc., such as C2127, D3147, E4147, F6147, G8147, G10147, FAM1247...

Volute liner, C2110, D3110, E4110, F6110, G10110, G12110, ...

2. Frame & Bearing Assembly types

Types: B, C, D, E, F, R, X, ST, T, TU, CC, DD, EE, FF, etc.

Slurry Pump Part Material

Part Name Material Specification HRC Application OEM Code
Liners & Impeller Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
AB15: 14%-18% chrome white iron ≥59 Used for higher wear condition A07
AB29: 27%-29% chrome white iron 43 Used for lower pH condition especially for FGD. It also can be used for low-sour condition and desulfuration installation with pH no less than 4 A49
AB33: 33%-37% chrome white iron   It can transport oxygenated slurry with pH not be less than 1 such as phospor-plaster, nitric acid, vitriol, phosphate etc. A33
Rubber       R08
      R26
      R33

Expeller & expeller ring Metal B27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron     G01
Stuffing Box Metal AB27: 23%-30% chrome white iron ≥56 Used for higher wear condition with pH between 5 and 12 A05
Grey iron     G01
Frame/Cover plate, bearing house & base Metal Grey iron     G01
Ductile iron     D21
Shaft Metal Carbon steel     E05
Shaft sleeve, lantern ring/resctrictor, neck ring, gland bolt Stainless steel 4Cr13     C21
304 SS     C22
316 SS     C23
Joint rings & seals Rubber Butyl     S21
EPDM rubber     S01
Nitrile     S10
Hypalon     S31
Neoprene     S44/S42
Viton     S50

Rubber Lined Centrifugal Slurry Pump parts of Impeller, liner, seals
